RUDDER ANGLE INDICATOR

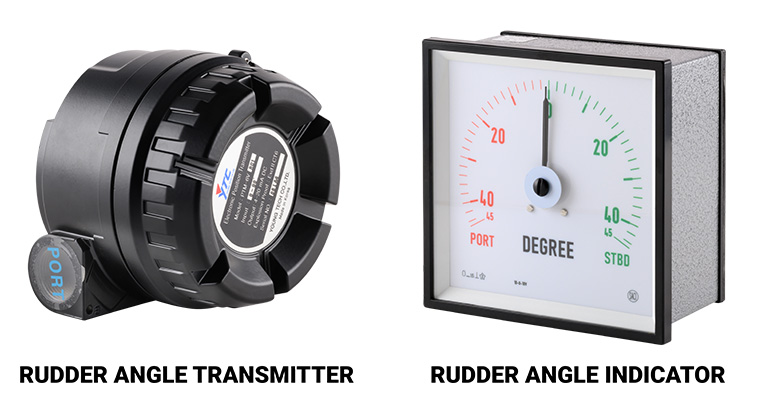

The rudder angle indicator equipment provides an analog indication of the steering gear’s actual position and consists of the following:
- The Rudder Angle Transmitter is mounted in the steering compartment, it transmits the vessel’s current Rudder position.
- Angle indicators are available for panel and bridge wing mounting.
Specifications:
Voltage: range: 0~10V or -10~0~10V DC
Current range: 4mA to 20mA
Dimensions: 96X96mm 144X144mm
Illumination voltage: AC 110V/220V DC 24V
